อินเวอร์เตอร์แบบ Hybrid Omnik ที่มีผลทดสอบ เป็นไปตามข้อกำหนดของ การไฟฟ้าส่วนภูมิภาค (PEA)
รับประกัน 60 เดือน: Warranty 60 Months

Omnikhyd- 3.0K-TL  ราคา พิเศษ 45,000 บาท  (45,000 Baht)
Omniksol-5.0k-TL2   ติดต่อสอบถาม

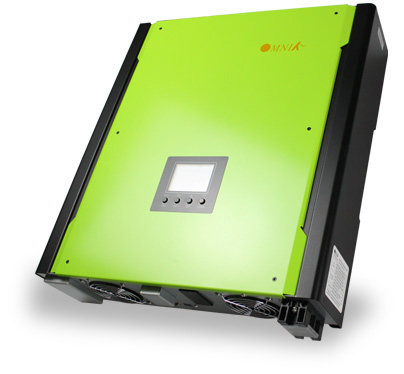

Solar Hybrid inverter Omnikhyd-3k/5k-TL, with conversion efficiency of 97.6%, integrated charage controller, storage inverter and PV inverter funtion into one ,automatically judge the on grid/ off grid mode and access into intelligent grid to reach Peak-valley complementary. Perfect battery charge curve and protection design is compatible with Lead-Acid ,Li battery.By the human interface, it is clear to see the its working status.

Features

• Transformerless design, high efficiency(Max.97.6%,Euro. 97.0%)
• Wide MPPT range 150-400Vdc, compatible with different module technologies
• Easy to wire, install and operate
• IP21 design, suitable for indoor installation
• 5 years standard warranty

Omnikhyd-3k/5k-TL combains the charge controller, energy storage inverter and PV inverter in one. It can recognize the on-grid and off-grid mode automatically in oder to shave the peak and fill the valley.It realizes a perfect battery charging curve and protection schemes.

Topology: Transformerless
Max. DC-voltage: 500 V
Max. apparent AC power: 3300 W / 5000 W
Max. Efficiency: 97.6 %
